Direct Traffic to the VM-Series Firewall

Table of Contents

Configure policy rules to direct traffic virtual machines or groups of virtual machines to the VM-Series firewall.

Select SecurityNetwork Introspection (E-W)RulesAdd Policy.
Click New Policy to give your policy a descriptive name.
Select your service chain from the Redirect To drop-down.
Select the policy and click Add Rule.
Click New Rule to give your rule a descriptive name.

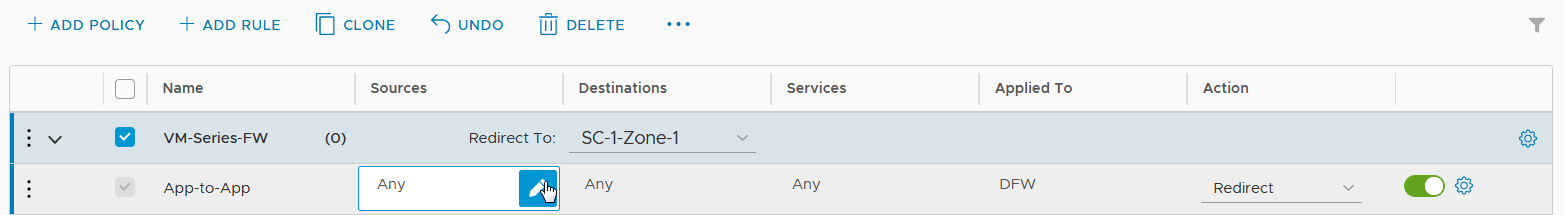

Select a source.

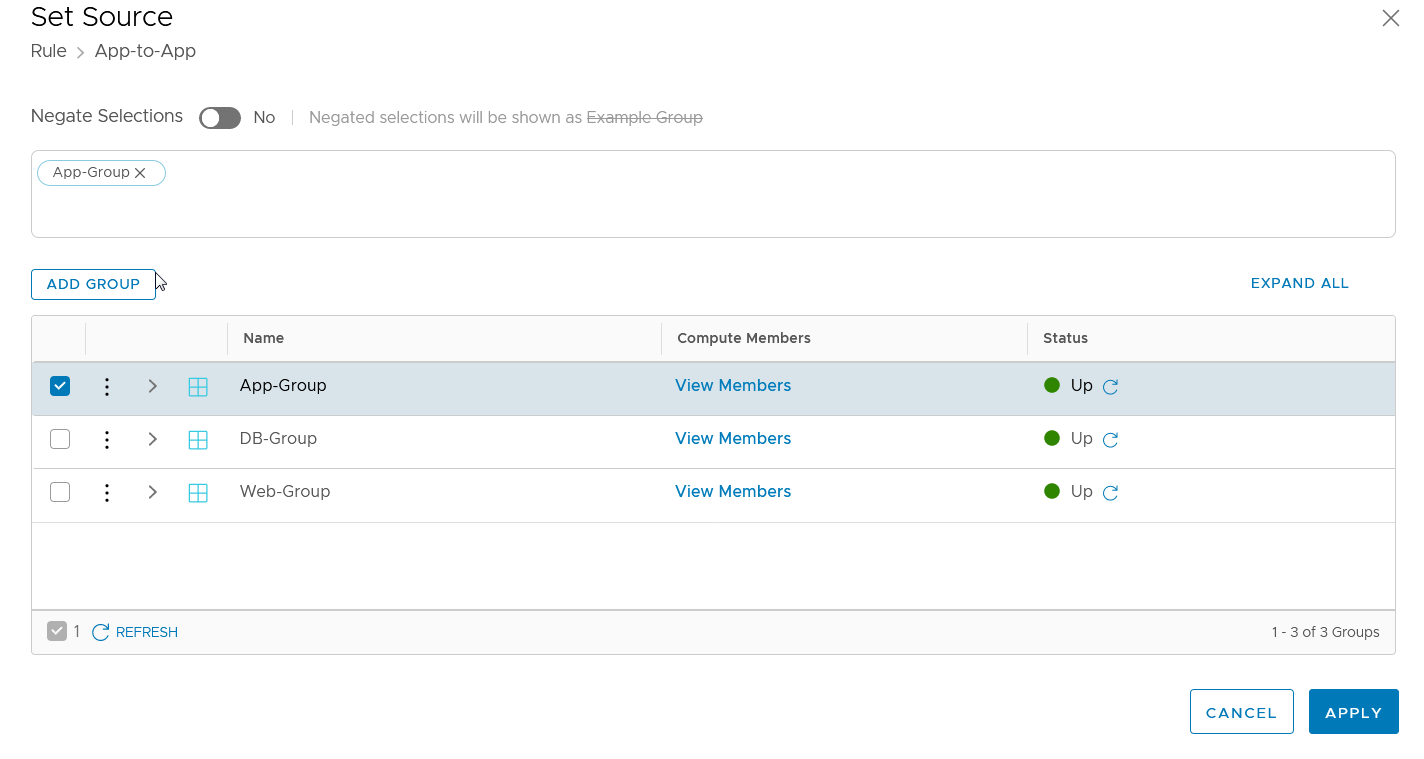

1. Click the pencil icon in the source column to choose a source group of virtual machines.
2. Check the source group or groups.
3. Click Apply.

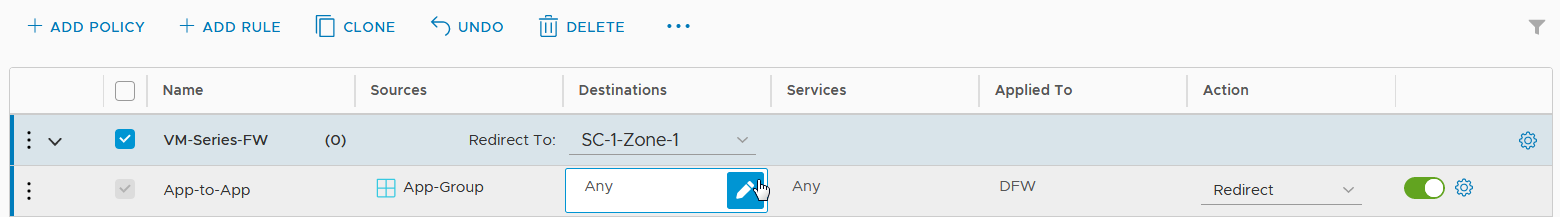

Select a Destination.

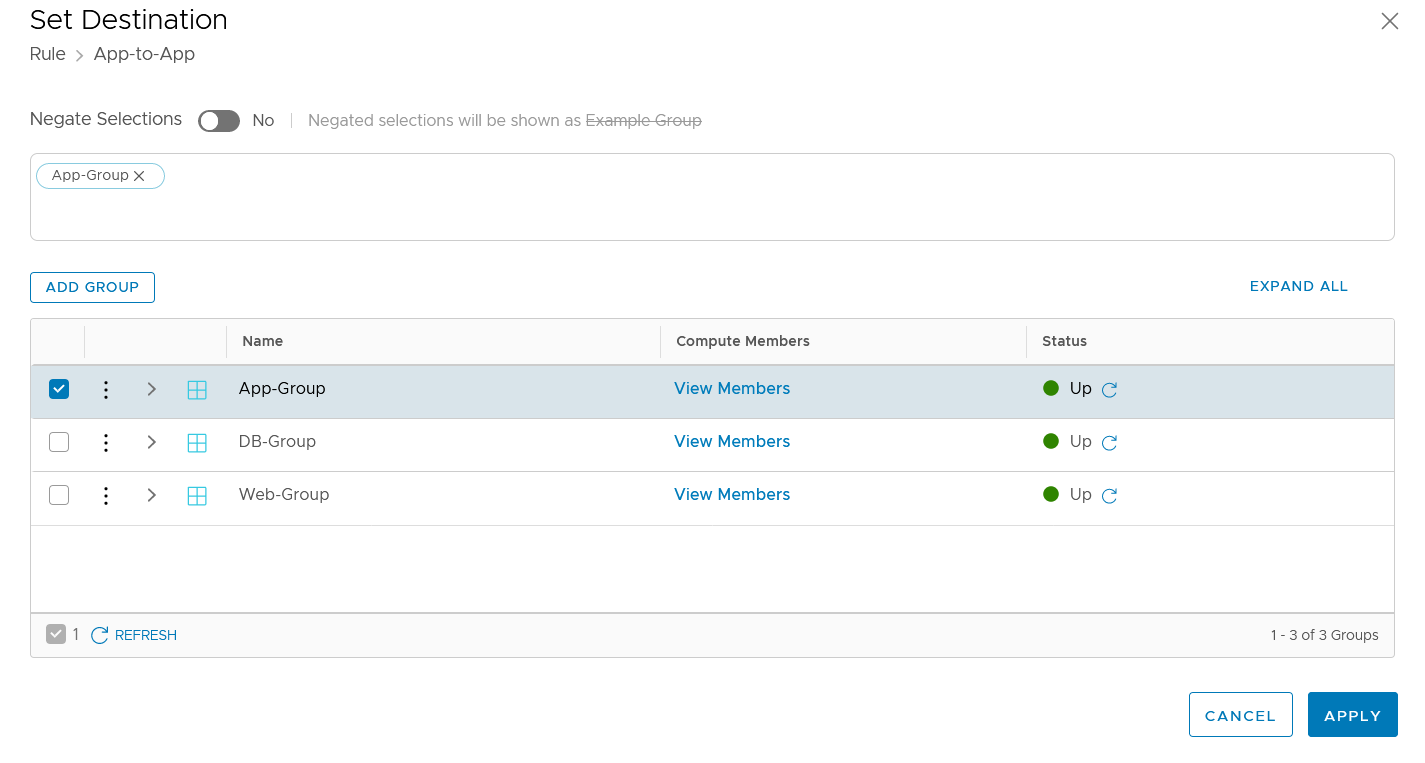

1. Click the pencil icon in the destination column to choose a source group of virtual machines.
2. Check the destination group or groups.
3. Click Apply.
(Optional) Select Services to which the rule will be applied.
Choose one of the following in the Applied To field:
- Select DFW to apply the rule to all virtual NICs attached to the logical switch.
- Select Groups to apply the rule to virtual NICs of members virtual machines in the specified group or groups.
Select the Action—Redirect or Do Not Redirect.
Click Publish.
Repeat this process to create additional policy or rules.
