Use Case: Shared Security Policies on Dedicated Compute Infrastructure
If you are a Managed Service Provider who
needs to secure a large enterprise (tenant) with multiple
departments (sub-tenants), and each tenant requires
dedicated compute infrastructure and security policy rules, you
need to create a service definition for each tenant.

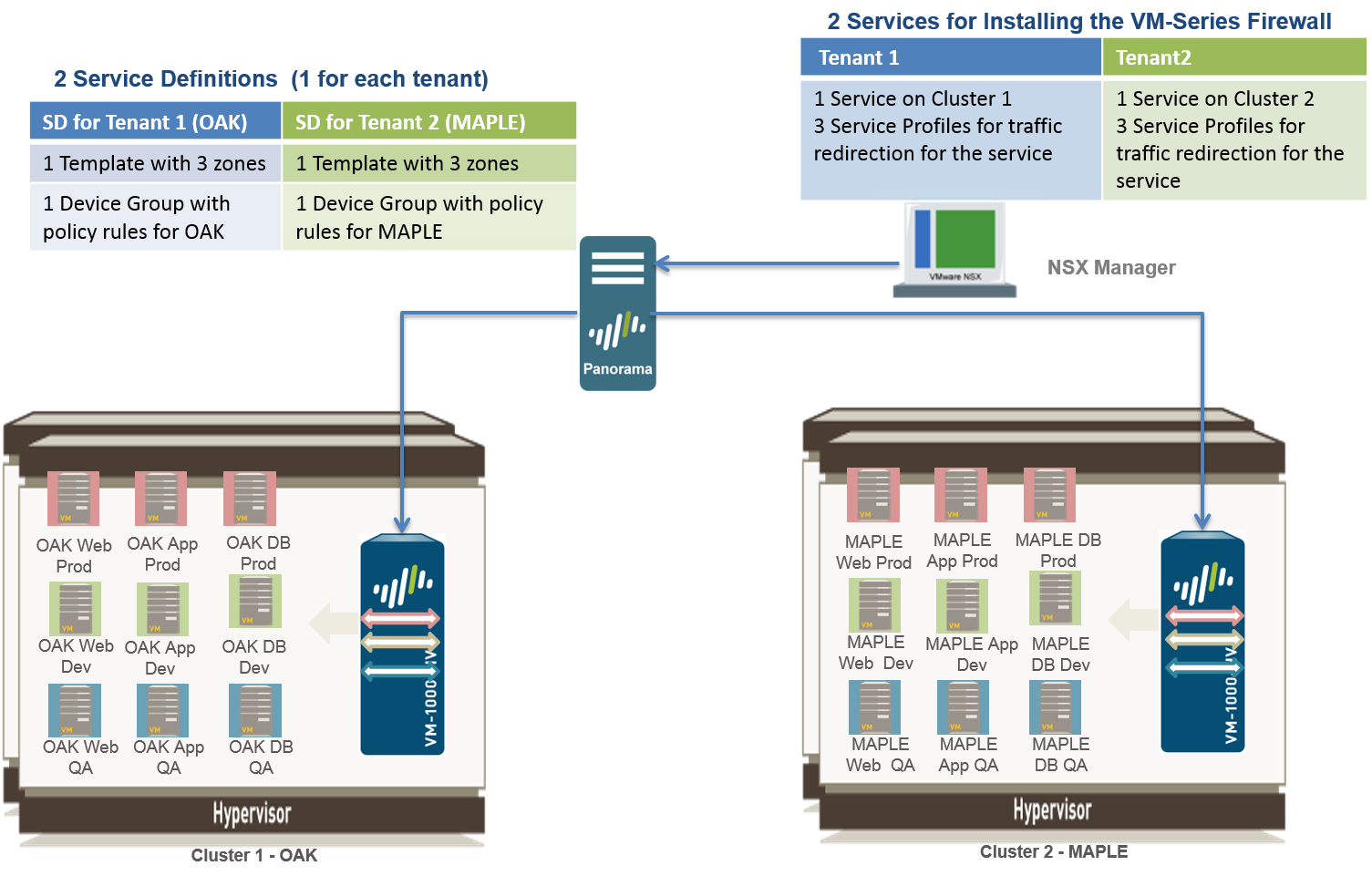

In this
use case, each tenant—Oak and Maple— has a dedicated ESXi cluster.
And each tenant has sub-tenants—Dev, QA, and Prod—whose workloads
are deployed in the cluster. You need to define two service definitions
to allow the VM-Series firewalls for each tenant to have Security
policies for their respective ESXi clusters. The service definition
for each tenant includes multiple zones (with corresponding virtual
wire subinterface pairs) for isolating traffic from each sub-tenant.
Each zone is mapped to a service profile on the NSX-V Manager, which
allows the firewall to distinguish traffic from the virtual machines
for each sub-tenant and to enforce zone-based security policy rules
within the common set of policy rules for the tenant. Zone-based
policies in combination with the Dynamic Address groups also allow
you to secure sub-tenants who may have overlapping networks, and hence
have duplicate IP addresses. To uniquely identify virtual machines
assigned to each sub-tenant and successfully enforce policy, the
NSX-V Manager provides the service profile and security group to
which a virtual machine belongs as match criteria in dynamic address
groups on Panorama. For more information, see Policy
Enforcement using Dynamic Address Groups.
You can also
configure role-based access control using access domains on Panorama.
Access domains allow you to control administrative access to specific device
groups (to manage policies and objects) and template stacks (to
manage network and device settings), so that each tenant administrator
can manage the configuration for their VM-Series firewalls. Role-based
access also allows you to limit log visibility for the respective
tenant only.
- This is one-time task and is required if you have not enabled access between the NSX-V Manager and Panorama.
- Log in to the Panorama web interface.
- Selectto add template stacks. This use case has two template stacks named NSX-Template-MAPLE and NSX-Template-OAK.PanoramaTemplates
- Selectand add device groups. This use case has two device groups named NSX-DG-OAK and NSX-DG-MAPLE.PanoramaDevice Groups
- Create NSX-V service profile zones within each template stack. To isolate traffic for each tenant in this use case, you need three zones for each tenant.
- Select.NetworkZones
- Select the correct template stack in theTemplatedrop-down.
- SelectAddand enter a zoneName. For example,Tenant1.
- Sets the interfaceTypetoVirtual Wire.
- ClickOK.
- Repeat the steps a-e to add additional zones for each sub-tenant.
- Verify that the zones are attached to the correct template stack.
- Create a service profile zone for each other template stack.
- Select.PanoramaVMwareNSX-VService Definitions
- SelectAdd. Fill in the details for the service definition for each tenant. In this example, the two service definitions are Palo Alto Networks - Maple and Palo Alto Networks - Oak.
- ClickCommit, and selectPanoramaas theCommit Typeto save the changes to the running configuration on Panorama.
- Selectand Set Up Dynamic Address Groups on Panorama for each tenant’s virtual machines. For example, this use case has two security groups per tenant; one security group for the web servers and the other security group for the application servers.ObjectsAddress Groups
- Selectto set up security policy rules for sending traffic to the VM-Series firewall.PoliciesSecurityPre Rules
- Selectand clickPanoramaVMwareNSX-VSteering RulesAuto-Generate Steering Rules.
- Commityour changes
- The ESXi hosts in the cluster must have the necessary NSX-V components that allow the NSX-V firewall and the VM-Series firewall to work together. The NSX-V Manager will install the components— the Ethernet Adapter Module (.eam) and the SDK —required to deploy the VM-Series firewall.
- Select.Networking and SecurityInstallationService Deployments
- ClickNew Service Deployment(green plus icon), and select the service definition for the Palo Alto Networks next generation firewall you want to deploy,Palo Alto Networks NGFW Test 1in this example, make your selections and clickFinish.
- Verify that the NSX-V Manager reports theInstallation StatusasSuccessful.
- Verify that the VM-Series firewall is successfully deployed.
- On the vCenter server, selectHosts and Clustersto check that every host in each cluster has one instance of the firewall.
- View the management IP address(es) and the PAN-OS version running on the firewall directly from vCenter server. VMware Tools is bundled with the PAN-OS software image and is automatically enabled when you launch the VM-Series firewall.
- Create dynamic address groups for each sub-tenant on Panorama. The dynamic address group(s) match on the name of the security group(s) you defined on the NSX-V Manager.
- On Panorama, select.ObjectsAddress Groups
- Select aDevice Groupfrom the drop-down and clickAdd.
- Add aNamefor the address group and set Type asDynamicandAdd Match Criteria. For ease of managing these groups, use the same name for the dynamic address group as that of the security group on the NSX-V Manager.
- Create the dynamic address groups for the sub-tenants for the other tenant, Oak in this example.
- On Panorama, create Security policies and use the dynamic address groups as source or destination address objects in security policy rules and push it to the firewalls.
- Select.PoliciesSecurityPre Rules
- Select aDevice Groupfrom the drop-down and clickAdd.
- Create rules for each sub-tenant. Make sure to keep the source and destination zone the same in a policy rule. To ensure that only the application that is running on the server is allowed, allow the service on the application-default port only.This use case has the following policy rules for the tenant Maple:
- Select the otherDevice Groupfrom the drop-down and create the Security policies for the each sub-tenant for the other tenant, Oak in this example.
- Click Commit, and select Commit Type as Device Groups. Select the device groups, NSX-DG-OAK and NSX-DG-MAPLE in this example and click OK.The commit pushes the Security policies to the firewalls that belong to each device group, and they can enforce policy on the traffic redirected by the NSX-V Manager.
- Verify that traffic from each tenant is secured.
- On Panorama, go toandMonitorLogsTrafficto view the Traffic logs and Threat logs. Select the device group for a tenant and sort on the Zone name for full visibility in to traffic from each sub-tenant.MonitorLogsThreat
- On Panorama, use the ACC for visibility into traffic patterns and actionable information on threats. Use the widgets and filters to interact with the data on the ACC.
- On the VM-Series firewall, selectto view the IP address for the members of each Dynamic Address Group.ObjectsAddress Groups
- (Optional) Enable role-based access for tenant administrators to manage the configuration and policies for the VM-Series firewalls.
- Create an access domain. An access domain allows you to restrict admin access to a specific device group and template stack. In this example, you create two access domains and restrict access to the device group and template stack for the respective tenant.
- Configure an admin role forDevice Group and Templaterole and allow the administrator to manage the access domain. The administrator can only manage the firewalls that belong to the access domain.
- Create an administrative account and associate the access domain and admin role with the account.
