Enable and Verify FIPS-CC Mode on Windows Endpoints

1. Enable FIPS mode for the Windows operating system.

   To enable FIPS-CC mode for GlobalProtect, you must first enable FIPS-CC mode for the Windows operating system.

   1. Launch the Command Prompt.
   2. Enter regedit to open the Windows Registry.

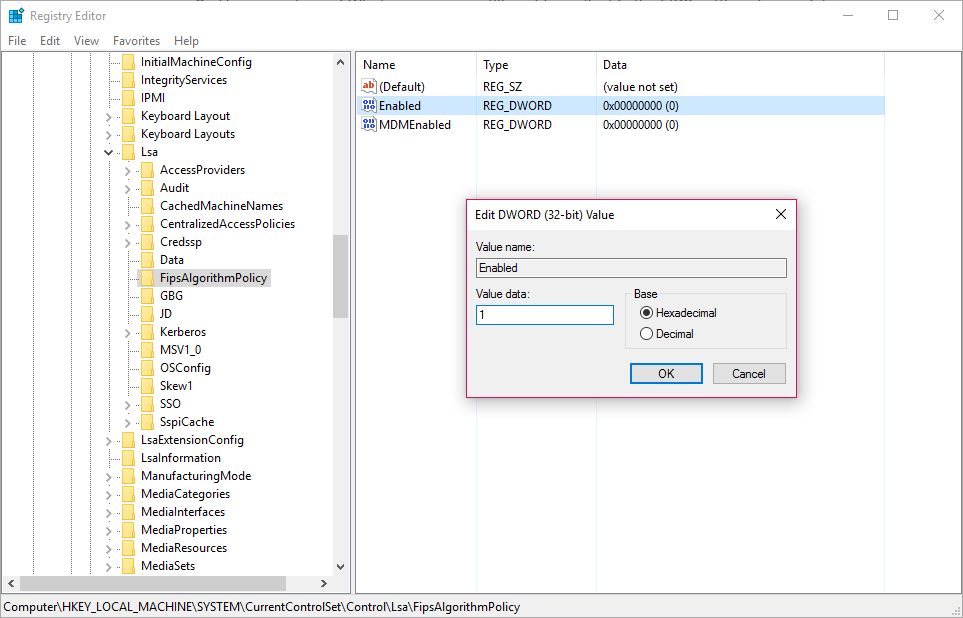

   3. In the Windows Registry, go to: HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa\FipsAlgorithmPolicy\.
   4. Right-click the Enabled registry value and Modify it.
   5. To enable FIPS mode, set the Value Data to 1. The default value of 0 indicates that FIPS mode is disabled.

   6. Click OK.
   7. Restart your endpoint.
2. Enable FIPS-CC mode for GlobalProtect.

   You cannot disable FIPS-CC mode after you enable it. To run GlobalProtect in non-FIPS-CC mode, end users must uninstall and then reinstall the GlobalProtect app. This clears all FIPS-CC mode settings from the Windows Registry.

   1. Launch the Command Prompt.
   2. Enter regedit to open the Windows Registry.
   3. In the Windows Registry, go to: HKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\Settings\.
   4. Click Edit and then select NewString Value.
   5. When prompted, specify the Name of the new registry value as enable-fips-cc-mode.
   6. Right-click the new registry value and Modify it.
   7. To enable FIPS-CC mode, set the Value Data to yes.
   8. Click OK.

3. Restart GlobalProtect.

   To enable the GlobalProtect app to initialize in FIPS-CC mode, you must restart GlobalProtect using one of the following methods:

   • Reboot your endpoint.
   • Restart the GlobalProtect application and GlobalProtect service (PanGPS):
     1. Launch the Command Prompt.
     2. Enter services.msc to open the Windows Services manager.

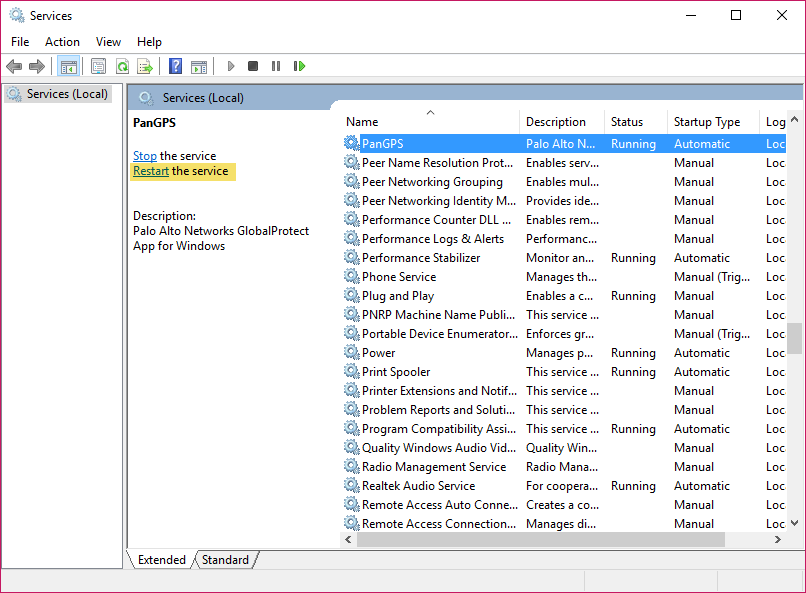

     3. From the Services list, select PanGPS.
     4. Restart the service.

4. Alternatively, you can enable FIPS-CC mode using the following msiexec syntax through the Microsoft Windows Installer (Msiexec): msiexec /i GlobalProtect64.msi ENABLEFIPSCCMODE=YES
5. Verify that FIPS-CC mode is enabled on the GlobalProtect app.

   1. Launch the GlobalProtect app.
   2. From the status panel, open the settings dialog (

      ).
   3. Select About.

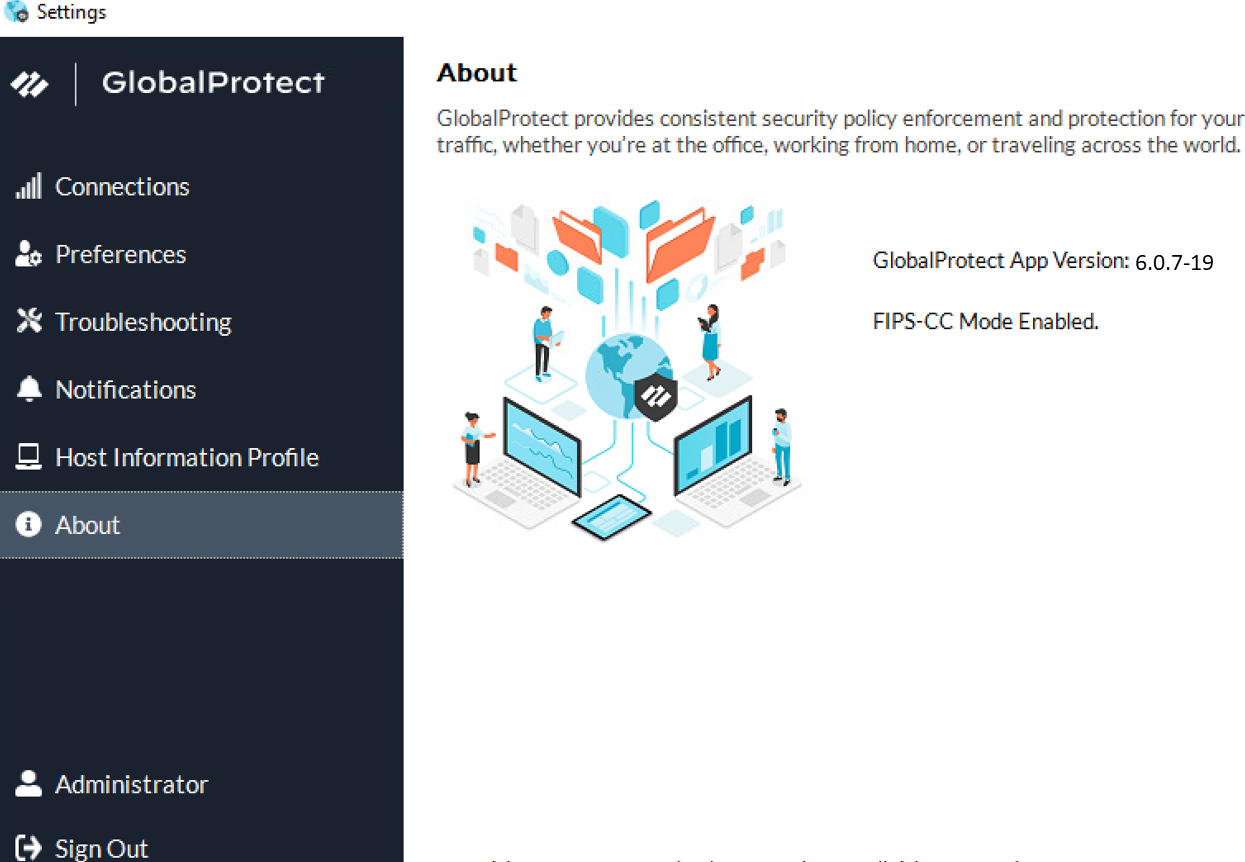

   4. Verify that FIPS-CC mode is enabled. If FIPS-CC mode is enabled, the About dialog displays the FIPS-CC Mode Enabled status.
