View and Monitor Dynamic Privilege Access Projects

View and monitor Dynamic Privilege Access project information in your environment.
Where Can I Use This?What Do I Need?
  • Prisma Access (Managed by Strata Cloud Manager)
  • Prisma Access (Managed by Panorama)
  • Prisma Access license
Gain visibility into your Prisma Access Agent deployment by using Strata Cloud Manager to monitor your users' project activity. Go to Activity InsightsProjects in the Strata Cloud Manager Command Center to view project-based access information in your environment.

Projects

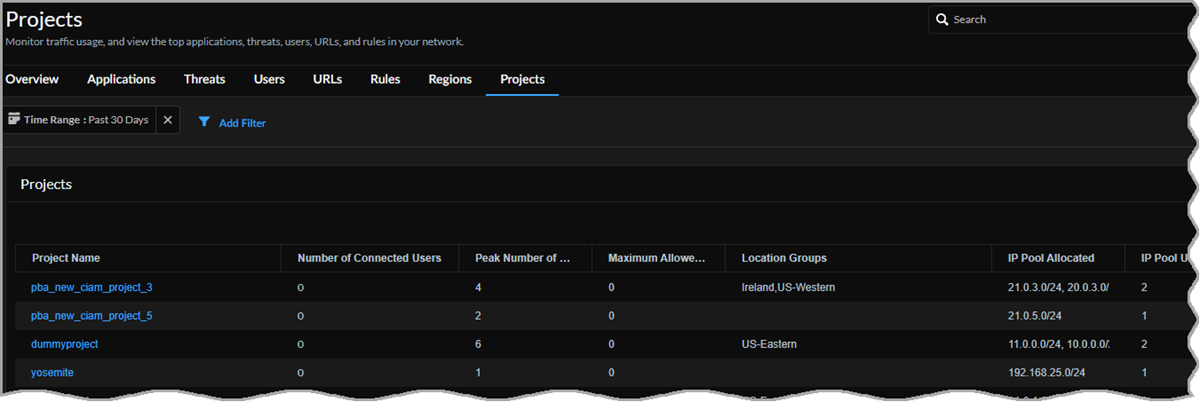

The Projects table provides an overall view about the projects your users access using Prisma Access during the selected time range. You can see each project's number of connected users, peak number of users, maximum allowed users, Prisma Access location groups, IP address pool allocated, the IP pool utilized, number of available IP addresses, and the last connected Prisma Access location.

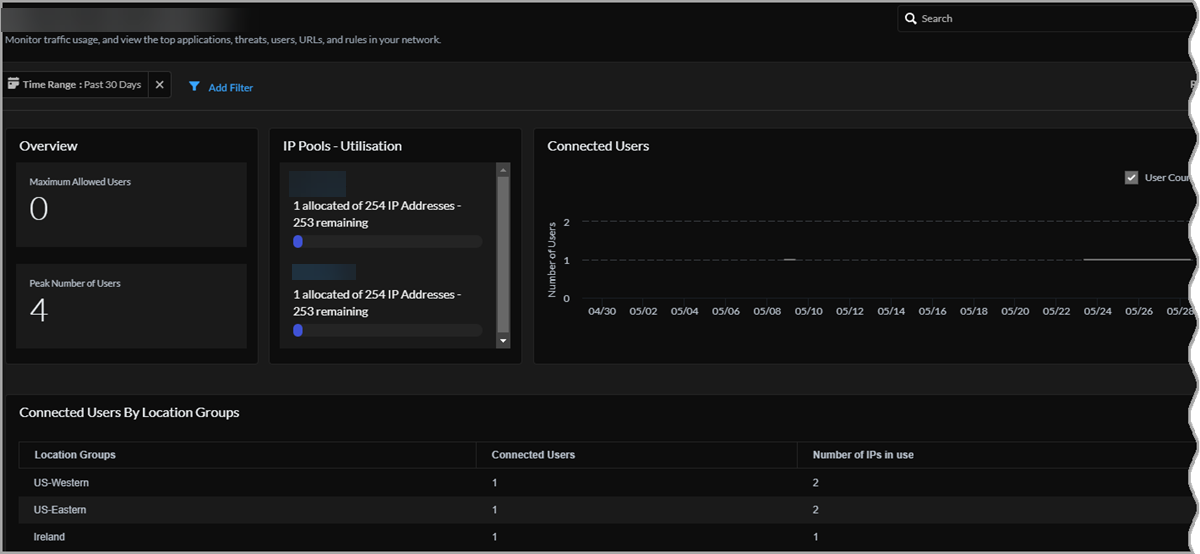

Select a Project Name to go to that project's details page. The project name (blurred in the following image) appears in the upper left corner of the page.

Overview

On the project details page, Overview shows the maximum allowed users for this project and the peak number of users during the selected time range.

IP Pools - Utilization

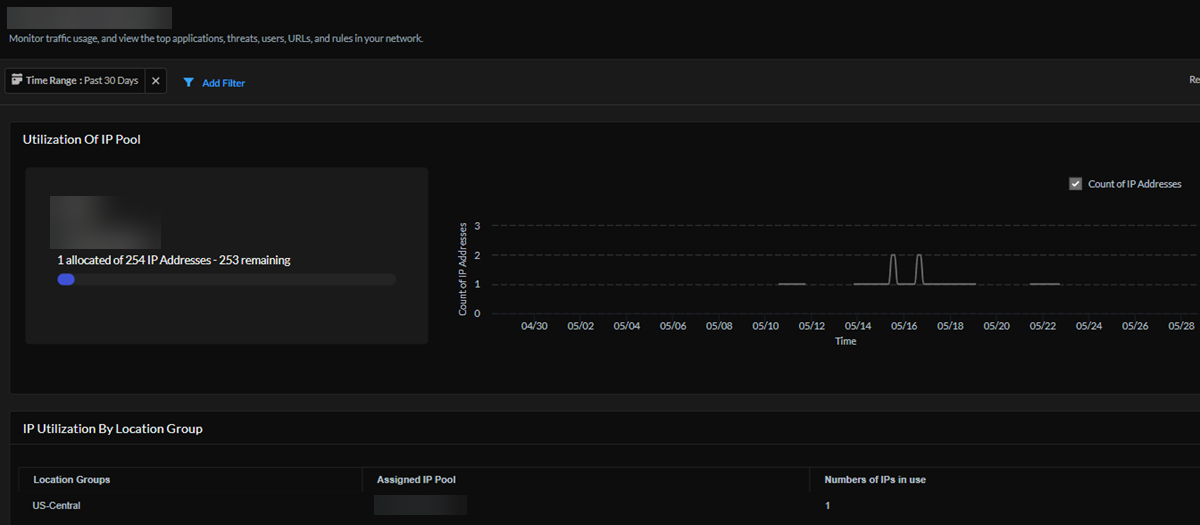

View the number of IPs in use and the number of IPs that are still available for the pools in this project. Select a specific IP pool to go to its details page (see the following image), where you can see this IP pool's utilization, the number of IP addresses used, and IP address utilization by Prisma Access location group.

Connected Users

View a graph of the users connected during the selected time range. Hover over any point in the graph to see the user count at that point.

Connected Users by Location Groups

View the number of users by the Prisma Access Location Group they're in. You can also see the number of IP addresses in use for each Location Group.
