Prisma Access
Native IPv6 Support Overview
Table of Contents
Native IPv6 Support Overview
Prisma Access
is expanding support for IPv6 beyond access to private applications to
support IPv6 for GlobalProtect as well as Remote Networks natively.Where Can I Use This? | What Do I Need? |
|---|---|
|
|
Prisma Access
expands support for IPv6 beyond access to private applications to
support IPv6 for GlobalProtect as well as Remote Networks natively.One benefit of native IPv6 support is the ability for Mobile Users at IPv6 only
and dual-stack endpoints to connect to
Prisma Access
over IPv6 connections using
GlobalProtect. Another benefit is the ability for GlobalProtect and Remote Networks to
access the internet and public SaaS applications over the internet where those internet
destinations require IPv6 connections.IPv6 offers a significantly larger address space over IPv4, allowing for an
almost unlimited number of unique IP addresses. At the same time, dual stack is a
transitional approach that allows networks and devices to operate using both IPv4 and
IPv6 simultaneously. Native IPv6 support makes
Prisma Access
compatible with both IPv6
and dual-stack connections to ease the migration process from IPv4 to IPv6, ensure
backward compatibility, and empower your journey to the cloud and IPv6-enabled

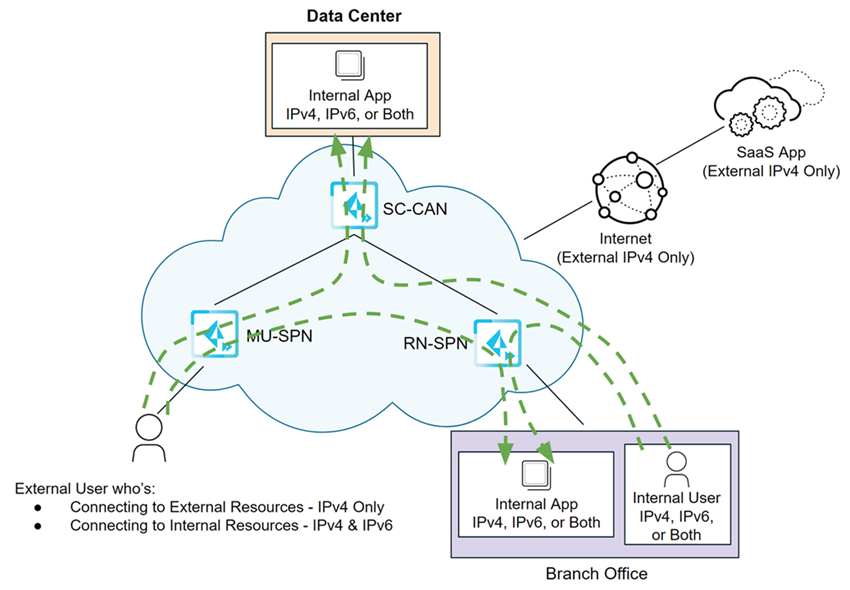

networks.Private App Support
Some
Prisma Access
deployments support IPv6 connections to internal "private"
apps. Prisma Access connects to data centers (Service Connections) and branch
offices (Remote Networks) using underlay, in which IPv6 traffic is passed through an
IPv4 tunnel.

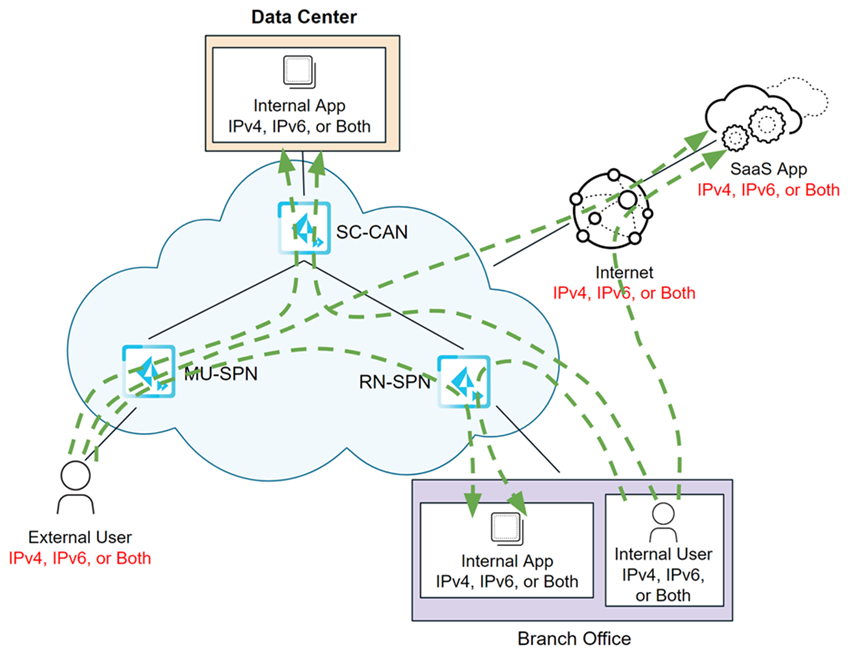

Native IPv6 in Prisma Access
Prisma Access
Prisma Access
- Dual Stack IPv4/IPv6 Inbound connections toPrisma Access
- Dual Stack IPv4/IPv6 Outbound connections to the internet and SaaS Apps via the internet
Now, users can connect to the internet and "public" SaaS apps via the internet using
IPv6.
External users (Mobile Users) need to be on one of the
following supported GlobalProtect versions for native IPv6 to work:
- 5.2.13-c418 (Win/Mac)
- 6.0.7-c378 (Win/Mac)
- 6.0.7-c20 (Linux)
- 6.1.2 (Win/Mac/Linux)
- 6.2.0-c89 (Win/Mac)

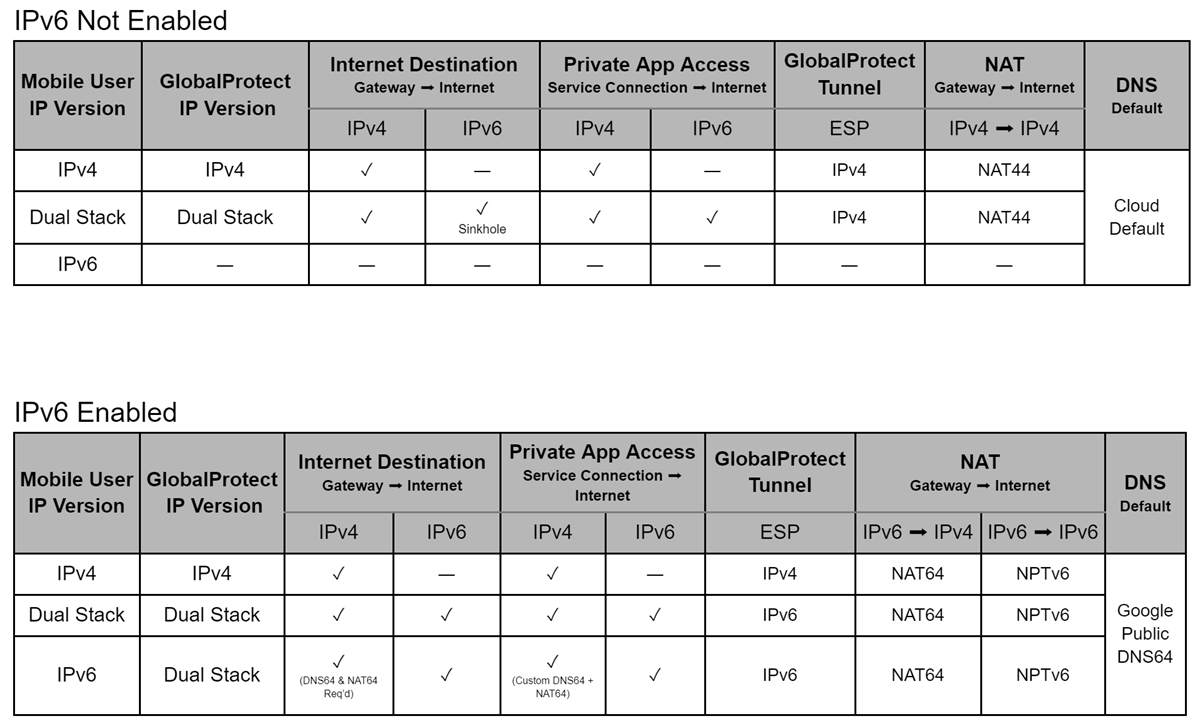

The following table shows the connectivity supported with IPv4 and IPv6
Prisma Access
deployments. A check mark indicates this connectivity is supported, and a dash
indicates it's not.
Follow these workflows to Enable IPv6 in your configuration.
